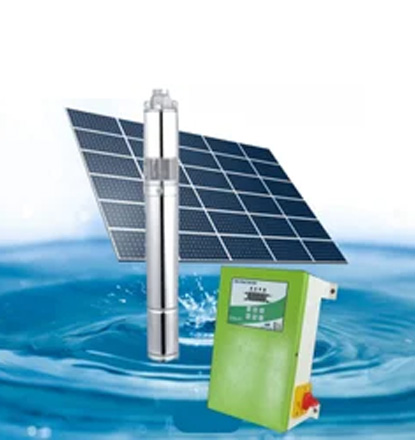

Solar Pump Controller

Solar Pump Controller

  1. Auto MPPT Technology:Maximizes power output by tracking the optimal power point.
  2. Automatic Timer Function:Enables scheduled pump operation based on user settings.
  3. RMS Card Compatibility:Supports remote monitoring and control.
  4. External On/Off Switch:Provides convenient and easy pump control.
  5. Comprehensive Protections: Includes safeguards against under-voltage, over-voltage, over-current, dry run, and over-temperature.
  6. Bright LED Display: Displays DC Bus Voltage, Current, Power, and RPM for real-time monitoring.
  7. Input Protection: Guards against over-current and over-voltage issues.
  8. IP65 Weatherproof Enclosure: Durable design with powder coating to prevent rust and withstand harsh conditions.
  9. Water Level Controller Inputs (Optional): Allows integration with water level sensors to prevent dry runs.

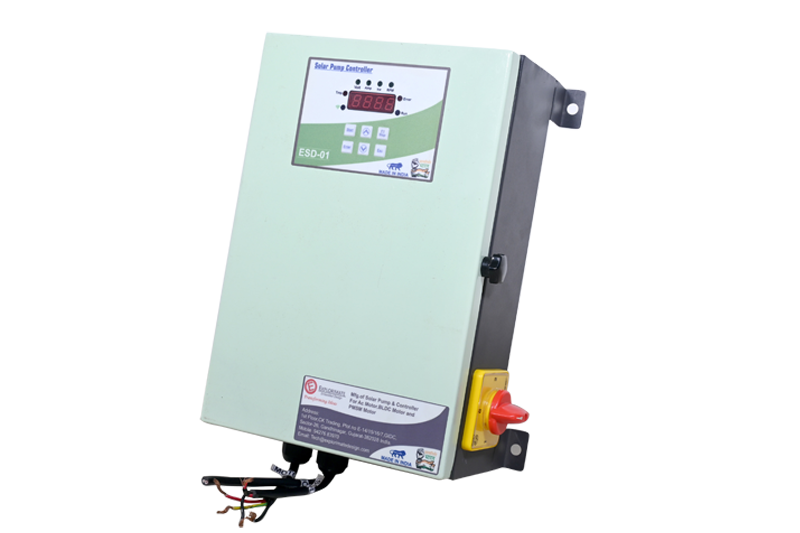

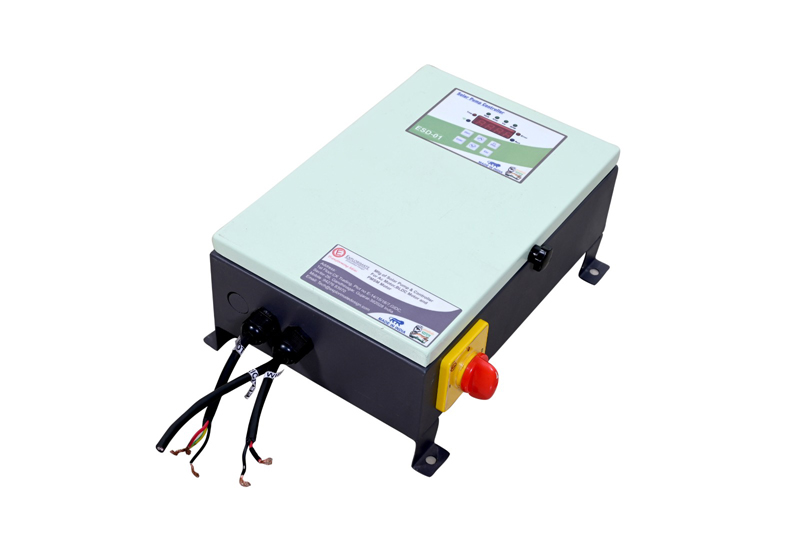

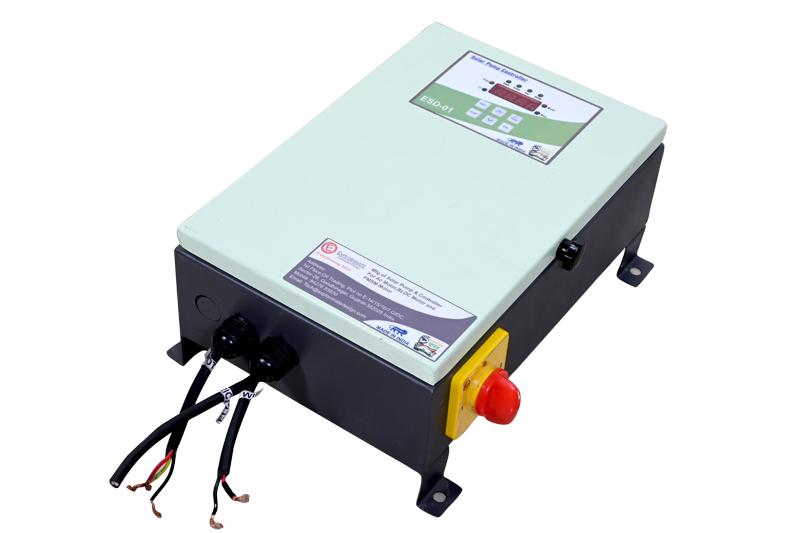

DC Solar Pump Controller

Model: ESD-1

  • Input Voltage: 150 Vdc Max
  • No.of Solar Panel : 3 Panel
  • Power Capacity: 1 Kw Max
  • Current Capacity: 10A Max
  • Ingress Protection : IP 65
  • Mppt Range: Auto Range as Per Voc
  • Mppt Efficiency: 99.6%
  • Output: 0 to 110 Vac/9 Amp

Model: ESD-2

  • Input Voltage: 300 Vdc Max
  • No.of Solar Panel : 6 Panel
  • Power Capacity: 2 Kw Max
  • Current Capacity: 10A Max
  • Ingress Protection : IP 65
  • Mppt Range: Auto Range as Per Voc
  • Mppt Efficiency: 99%
  • Output: 0 to 220 Vac/9 Amp

Model: ESD-3

  • Input Voltage: 420 Vdc Max
  • No.of Solar Panel : 9 Panel
  • Power Capacity: 3.3 Kw Max
  • Current Capacity: 10A Max
  • Ingress Protection : IP 65
  • Mppt Range: Auto Range as Per Voc
  • Mppt Efficiency: 99
  • Output: 0 to 330 Vac/9 Amp

AC DC Solar Pump Controller

Model: ESD-1 HY

  • Input Voltage: 420 Vdc Max
  • No.of Solar Panel : 3 Panel
  • Power Capacity: 1 Kw Max
  • Current Capacity: 10A Max
  • Ingress Protection : IP 65
  • Mppt Range: Auto Range as Per Voc
  • Mppt Efficiency: 99.6%
  • Output: 0 to 110 Vac/9 Amp

Model: ESD-2 HY

  • Input Voltage: 420 Vdc Max
  • No.of Solar Panel : 6 Panel
  • Power Capacity: 2 Kw Max
  • Current Capacity: 10A Max
  • Ingress Protection : IP 65
  • Mppt Range: Auto Range as Per Voc
  • Mppt Efficiency: 99%
  • Output: 0 to 220 Vac/9 Amp

Model: ESD-3 HY

  • Input Voltage: 420 Vdc Max
  • No.of Solar Panel : 9 Panel
  • Power Capacity: 3.3 Kw Max
  • Current Capacity: 10A Max
  • Ingress Protection : IP 65
  • Mppt Range: Auto Range as Per Voc
  • Mppt Efficiency: 99
  • Output: 0 to 330 Vac/9 Amp
