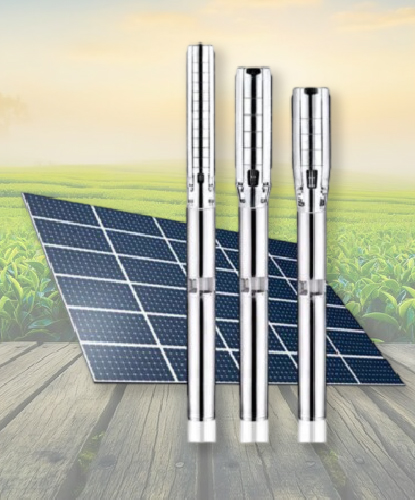

Solar Submersible Pump
At Explorimate, we believe in harnessing the power of nature to deliver sustainable water solutions. Our Solar Submersible Pump is a state-of-the-art innovation designed to meet the water needs of agricultural, industrial, and residential applications. Powered by high-efficiency solar panels, this pump operates independently of conventional electricity, making it an ideal choice for remote areas with limited access to the power grid. Its durable design ensures reliable operation, drawing water from deep wells, rivers, or boreholes, and delivering it efficiently to where it’s needed most.
In addition to its robust performance, our Solar Submersible Pump offers significant environmental and economic benefits. By relying on renewable solar energy, the pump reduces dependency on fossil fuels, lowers operational costs, and minimizes carbon footprint. Whether you need water for irrigation, livestock, or potable use, Explorimate’s Solar Submersible Pump provides a continuous and eco-friendly solution that aligns with our commitment to innovation and sustainability. Trust Explorimate to help you conserve resources while meeting your water demands with cutting-edge technology.
Solar Borewell Pump For Drining Water
| Model | Array Rating (WP) |
Motor Power | SPV Array (VOC) |
Input Voltage (Vmp) |
Pump Type | Discharge (LPD) |
Discharge Calculated at (m) |
Shut Off Head (m) |
| TMD500 | 500 | 375 W (0.5 HP) |
67-96 | 58-84 | TM005H010 | 20000 | 10 | 12 |
| TM005H020 | 10000 | 20 | 25 | |||||
| TM005H030 | 6000 | 30 | 45 | |||||
| TMD750 | 750 | 560 W (0.75 HP) |
96-126 | 84-110 | TM007H030 | 16700 | 30 | 45 |
| TM007H060 | 8400 | 60 | 90 | |||||
| TM007H090 | 4200 | 90 | 120 | |||||
| TMD900 | 900 | 750 W (1 HP) |
126-148 | 110-129 | TM010H030 | 20000 | 30 | 45 |
| TM010H060 | 10000 | 60 | 90 | |||||
| TM010H090 | 5000 | 90 | 120 |
Water output figures are on a clear sunny day with 3 times tracking of SPV panel, under "Average Daily Solar Radiation" condition of 7.15 KWh/sq.m on the surface of PV Array (i.e. coplanar with PV module) 2 Standard Test Condition: AM=1.5, E=1000W/m, Cell Temperature: 25°C
Solar Borewell Pump For Irrigation
| Model | Array Rating (WP) |
Motor Power | SPV Array (VOC) |
Input Voltage (Vmp) |
Pump Type | Discharge (LPD) |
Discharge Calculated at(m) |
Shut Off Head (m) |
| TMV1200 | 1200 | 750 W (1 HP) | 148-222 | 129-194 | TM010H020 | 60000 | 20 | 45 |
| TM010H030 | 45600 | 30 | 45 | |||||
| TM010H050 | 25200 | 50 | 70 | |||||
| TM010H070 | 16800 | 70 | 150 | |||||
| TM010H100 | 11400 | 100 | 150 | |||||
| TMV1800 | 1800 | 1500 W (2 HP) | 222-326 | 194-284 | TM020H030 | 68400 | 30 | 45 |
| TM020H050 | 37800 | 50 | 70 | |||||
| TM020H070 | 25200 | 70 | 150 | |||||
| TM020H0100 | 17100 | 100 | 150 | |||||
| TMV3000 | 3000 | 2250W (3HP) | 178-266 | 155-232 | TM030H020 | 150000 | 20 | 45 |
| TM030H030 | 114000 | 30 | 45 | |||||
| TM030H050 | 69000 | 50 | 70 | |||||
| TM030H070 | 45000 | 70 | 150 | |||||
| TM030H100 | 28500 | 100 | 150 | |||||
| TMV5000 | 4800 | 3750W (5HP) | 296-407 | 258-355 | TM050H020 | 240000 | 20 | 45 |
| TM050H030 | 168000 | 30 | 45 | |||||
| TM050H050 | 110400 | 50 | 70 | |||||
| TM050H070 | 72000 | 70 | 150 | |||||
| TM050H100 | 50400 | 100 | 150 | |||||
| TMAV7500 | 7500 | 5625W (7.5HP) | 484-530 | 390-432 | TM075H050 | 155250 | 50 | 70 |
| TM075H070 | 101250 | 70 | 100 | |||||
| TM075H100 | 70875 | 100 | 150 | |||||
| TMAV10000 | 10000 | 7500W (10 HP) | 616-704 | 504-576 | TM100H050 | 155250 | 50 | 70 |
| TM100H070 | 135000 | 70 | 100 | |||||
| TM010H100 | 94500 | 100 | 150 |
Water output figures are on a clear sunny day with 3 times tracking of SPV panel, under "Average Daily Solar Radiation" condition of 7.15 KWh/sq.m on the surface of PV Array 2 (i.e. coplanar with PV module) Standard Test Condition: AM=1.5, E=1000W/m, Cell Temperature: 25°C

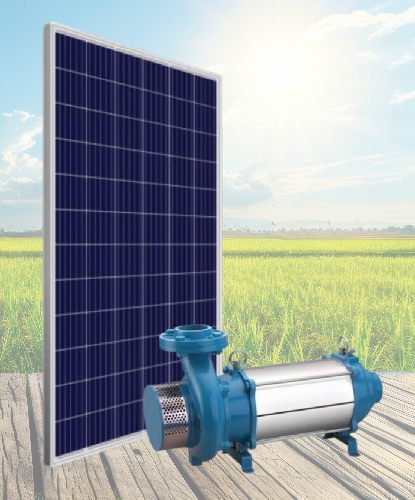

Solar Open Well Pump
Model :(2 HP TO 10HP)
Material of Construction
| Suction | Cast Iron FG200 |
|---|---|
| Impeller | Cast Iron FG200 |
| Diffuser | Ν.Α |
| Pump Shaft | SS 410 |
| FASTNER | SS 202 |
| Body | SS 202 |
|---|---|
| Upper Lower Housing | Cast Iron FG200 |
| Bush Bearing | LTB 4 |
| Motor Shaft | SS 410 |
| All Fastner | SS 202 |
Motor Details
| Motor rating | 2HP | 3HP | 5HP | 7.5 HP | 10 HP |
| Rated Voltage | 160 V | 230 V | 380 V | 320 V | 380 V |
| Rated Current | 8.5 A | 9.0 A | 9.0 A | 15 A | 18 A |
PUMP SET DETAILS
| AC OPEN WELL PUMP MNRE | ||||||||
| Pump Model | H.P | Motor Voltage | Head In Mtr | Array Power IN Wp | SUCTION X DELIVERY IN MM | LPD | PV Module Used | No in Series X No in Parallel |
| MFRS-210 | 2HP | 160V | 10 | 1800 | 65X50 | 150300 | 300Wp | 6X1 |
| MFRS-220 | 20 | 1800 | 65X50 | 105400 | 300Wp | 6X1 | ||
| MFRS-310 | 3HP | 230V | 10 | 3000 | 65X65 | 180500 | 300WP | 10X1 |
| MFRS-320 | 20 | 3000 | 65X65 | 142000 | 300WP | 10X1 | ||
| MFRS-510 | 5HP | 380V | 10 | 4800 | 80X80 | 350500 | 300Wp | 10X1 |
| MFRS-520 | 20 | 4800 | 65X65 | 285000 | 300Wp | 16X1 | ||
| MFRS-530 | 30 | 4800 | 65X50 | 172000 | 300Wp | 16X1 | ||
| MFRS-7520 | 7.5HP | 320V | 20 | 7000 | 80X80 | 490300 | 300WP | 12X2 |
| MFRS-7530 | 30 | 7000 | 65X65 | 320000 | 300WP | 12X2 | ||
| MFRS-7540 | 40 | 7000 | 65X50 | 160500 | 300WP | 12X2 | ||
| MFRS-1020 | 10HP | 380V | 20 | 9000 | 100X100 | 690600 | 300Wp | 15X2 |
| MFRS-1030 | 30 | 9000 | 80X80 | 345000 | 300Wp | 15X2 | ||
| MFRS-1040 | 40 | 9000 | 65X50 | 189500 | 300Wp | 15X2 | ||
